York

Central Air Heat Pump, 2 Ton, 17 SEER, R-410A

NOTICE: This item is affected by a final sale policy effective August 1, 2025. Please refer to the R-410A Sunset Policy Notice in the documents section.
$0.00
SKU HMH72B241S
Brand York
Product Series HMH7
Country of Origin United States
Part Number HMH72B241S
Cooling Capacity 24000 BTU/hr
SEER Rating 17 SEER
Energy Star No
Supply Voltage 230V
Phase Single Phase
Hertz 50/60Hz
Maximum Fuse Size (MOP) 25 A
Stages Variable Speed
Tons 2 T
Compressor Type Rotary
Refrigerant (ASHRAE) R-410A
Liquid Line 3/8"
Suction Line 3/4"
Noise Level 65 dB
Color White
Product Length/Depth 12.25 "
Product Width 37.375 "
Product Height 26.375 "
Product Weight 112 oz
Shipping Length/Depth 17 "
Shipping Width 39 "
Shipping Height 34 "
Shipping Weight 121.3 lb

Johnson Control modulating side discharge HP, up to 24000 BTU , up to 18 SEER, refrigerant R410-A, electrical supply 208-230/1/60 , 20 amps disconnect required , pipe size 3/8 , 5/8 , weight 112lbs ,* Needs to be sold with additional install kit * 10 years parts conditional warranty. ( see applicable conditions )


The HMH7, 17+ SEER2 Modulating Heat Pumps are the newest offering in our successful LX Family of split system heat pumps. These units use a state of the art inverter driven compressor to precisely meet customers comfort requirements. Using a conventional heat pump thermostat, the system will automatically adjust capacity and airflow to meet the comfort requirements of the consumer, maximizing comfort while minimizing energy bills. Should the unit ever require service the main control and inverter control both provide system self-diagnostics. Information regarding compatibility kits for these Horizontal Discharge Modulating Heat Pumps: The S1-HMH7AK001 kit is required for standard ECM gas furnaces and air handling units. The S1-HMH7AK002 kit is required for premium variable speed gas furnaces and air handling units, with the exception of JHVT and JMVT models. The S1-BFD083S liquid line filter-drier is required if an S1-HMH7AK00* kit is not used.

Documents

Recommended Products

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Surge Protective Device, RSH-50
INSTALL KIT HMH 7 (X 13) MODEL SERIES

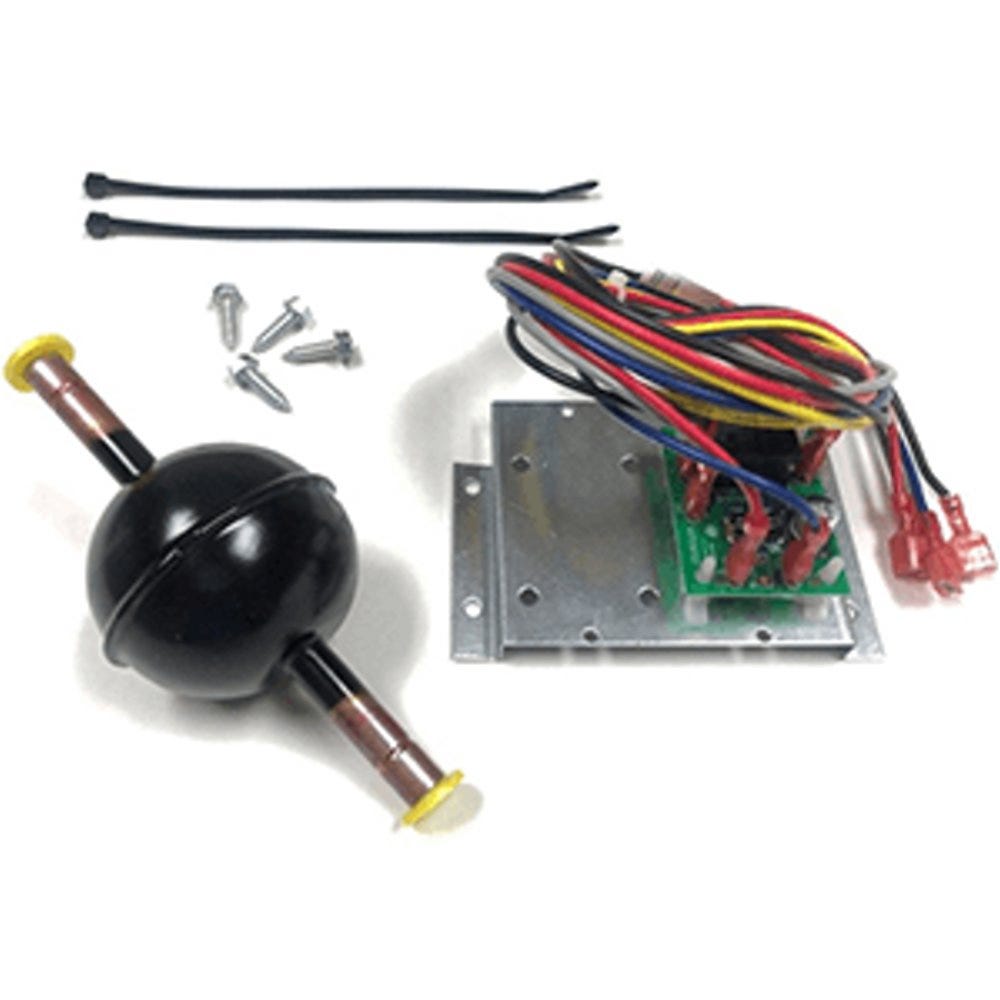

Compatibility Kit For Horizontal Discharge Modulating Heat Pumps

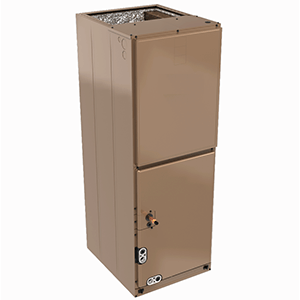

JHET Series Standard ECM Single Piece Multi-Position Air Handler - 2.5 Ton, 17.5"W
